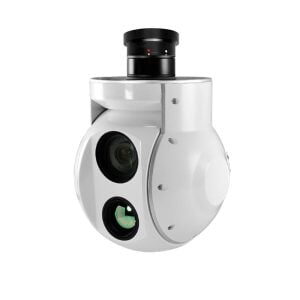

Gemini X30T-V
3 AXIS ISR AI MULTISENSOR GIMBAL
Gemini X30T-V is a high-performance 2-axis ISR Gimbal featuring
of Integrated Video Processor capable of tracking Target fixed and in
movement such as People, Cars, Boats and other “Target”
Equipped with EO Sensor with 30X Optical Zoom, IR Thermal
640×480 with 50mm optics, this Tactical ISR Payload is the ideal
For Class 1 and Class 2 unmanned aerial aircraft (UAVs or Drones), Vtol.
The highly integrated Industrial Design, high precision and
stabilization under all conditions of use and the powerful processor
integrated make Gemini a benchmark multi-sensor ISR Payload for Surveillance, Monitoring, Border Control and SAR applications
Professional ISR Gimbal for UAV
The Strong Point of Gemini X30T-50 is the Dual Sensor EO-IR system, which can detect and track cars,
People and boats miles away.
Target’s automatic tracking technology uses Computer Vision-based
embedded video processorto replace the human process,
and combines visual technology To track fixed or moving targets.
Efficiently track goals of interest, improve autonomy
And the level of intelligence of UAV systems is intended to reduce or even eliminate
dependence on operators.
integrated video processor reduces operator load, shortens reaction time
of the entire decision-making process and provides accurate and reliable information about the fixed or mobile target.
Main Functions
- 1080p fullHD daylight RGB Sensor
- 30x daylight optical zoom (12x digital zoom)
- 640x512p @30hz Uncooled IR Camera @19mm lens (8x digital zoom)
- AI Target Detection & Recognition
- Object Tracking
- Laser range finder
- Starvis EO Night vision 0.00008lux
- Target Geolocalization
- NightVision IR
- KLV Meta Data (MPEG-TS) STANAG
- Multiview
- IP video streaming, HDMI, SDI HD
- Mavlink ready
- H264/H265 Video Encoding
Target tracking
Our ISR Camera Gimbal are able to track to automatically moving objects. The operator can select the target and zoom in, while the on-board processor will keep the target centered on the monitor, regardless of the drone’s movement. This is a key feature for long-range surveillance, monitoring and missing person search applications. Target tracking is critical in applications where the drone and target are both in motion.
Multiview - PIP
The ability to quickly switch between the full-screen IR view of the thermal imaging camera rather than the RGB Camera is an essential factor to which we have added the PIP “picture in picture” view that allows you to select which camera to see in full screen and which in a smaller frame size. The Picture in Picture function is essential for never losing sight of a thermal detail while we can push the optical zoom up to 30X.
KLV Meta Data (STANAG)
The MPEG-TS stream provides an infrastructure for transporting video, audio, and metadata in a single stream of moving images. KLV (Key-Length-Value) is the current metadata standard recommended by MISB.
It is an SMPTE standard adopted by MISB for digital encoding of metadata in moving image streams. MISB maintains KLV metadata tag records for use in support of UAS operations.
Quick mount
Transform your Drone to suit your needs in a few moments without any setup or difficult wiring thanks to the brand new and exclusive Quick-Mount system that allows HOTSWAP from one Payload to another (gimbal or sensor) in a few moments without any setup and without having to turn off the drone.
No limitation of use for our drones thanks also to the Multisense HUB ready to connect to any sensor ensuring its control, data/video streaming and power supply.
SmartControl Software
SmartControl is the software interface that allows all our Professional Gimbal to be managed via Ethernet/IP (RTSP/UDP), TCP and Serial (TTL) protocol. The software not only offers a rich interface of Payload control functions (manageable via external Joysticks), but also allows management of camera setup, OSD interface, control mapping from remote control, and video stream.
In the latest version of SmartControl, we have implemented the “maps” function, which allows the point we are framing to be displayed on a map.
Not Only ISR Gimbal but Complete Solutions for Video Surveillance
Aerial Video Surveillance with Professional Drones is not just about the Drone
but all related equipment including Flight Planning Software,
Radiolink Encrypted and Professional ISR Sensors.
Our packages designed by Industry Professionals for Professionals integrate
Perfectly Calibrated Chambers and Sensors Connected to IMUs and Centimeter Precision GNSS Systems
to achieve safety and performance in flight even in Extreme conditions due to Waterproof Shells.
Tactical Drones
Discover our integrated solutions specifically designed to
Video surveillance and monitoring applications at Medium – Long Range.
Main features
– Up to 10 hours of flight time
– IP 53 waterproof structure
– Up to 150km range
– MESH Technology
– AES 256 Encrypted Communication
– Anti-jamming systems
– 4G/5G connectivity and control
IR Thermal Camera
The LWIR ≤60mK Temocamera Integrated on ISR Gemini Dual Sensor Gimbales
Guarantees sharp images and high contrast thanks to 640×512 @ 12μm – 30hz sensor
Ideal for long-range detection and identification even in total absence of light.
Specifications
Lens size |
25mm |
|---|---|
|
Horizontal FOV |
24.6° |
|
Vertical FOV |
18.5° |
|
Diagonal FOV |
30.4° |
|
Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
|
Pixel detector |
640*480 |
|
Pixel size |
17μm |
|
Focusing method |
Athermal prime lens |
|
Emissivity correction |
0.01~1 |
|
NETD |
≤50mK (@25℃) |
|
MRTD |
≤650mK (@characteristic frequency) |
|
Image enhancement |
Auto adjust image brightness and contrast ratio |
|
Color palette |
White, iron red, pseudo color |
|
Auto Non-uniform correction |
Yes (no shutter) |
|
Digital zoom |
1x, 3x |
|
Sync correct time |
Yes |
|
Thermometry type |
Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional) |
|
Temperature warning |
0℃~120℃ |
EO FullHD 1080p Camera
The high-resolution Sony RGB Night & Day Sensor combined with the Powerful Optical Zoom make this
Gimbal ISR Multi Sensor an ideal ally for Video Surveillance operations
Missing Search, Border Control, and all those applications where long-range video remote sensing are essential.
Specifications
Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
|---|---|
|
Picture quality |
Full HD 1080 (1920*1080) |
|
Effective pixel |
2.13MP |
|
Lens optical zoom |
30x, F=4.3~129mm |
|
Digital zoom |
12x (360x with optical zoom) |
|
Min object distance |
10mm(wide end) to 1200mm(tele end) |
|
Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
|
Sync system |
Internal |
|
S/N ratio |
more than 50dB |
|
Min illumination |
Color [email protected] |
|
Gain |
Auto/Manual 0dB to 50.0dB Max.Gain Limit 10.7 dB to 50.0dB steps) |
|
White balance |
Car, ATW, Indoor, Outdoor |
|
Shutter speed |
1/1s to 1/10,000s |
|
Backlight compensation |
Yes |
|
Aperture control |
16 steps |
|
OSD |
Yes |
|
Photo formate |
JPG |
|
Video formed |
MP4 |
Gimbal
High Performance Gimbal with double IMU, Brushless motors with Encoders and Onboard Processors
designed for demanding applications that require clear and precise images
Zeta gimbals are a benchmark for build quality, extreme expandability and compatibility.
Specifications
Working voltage |
12V ~ 16V |
|---|---|
|
Input voltage |
3S ~ 4S |
|
Output voltage |
5V (connect with PWM) |
|
Dynamic current |
500mA @ 12V |
|
Idle current |
400mA @ 12V |
|
Working temp. |
-20℃ ~ +60℃ |
|
Output |
micro HDMI(HD output 1080P 60fps) / IP / SDI |
|
Local-storage |
SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
|
Picture storage |
JPG(1920*1080) |
|
Video storage |
MP4 (1080P 30fps/60fps) |
|
Control method |
PWM / TTL / S.BUS / TCP(IP output) |
|
Pitch/Tilt Range |
±90° |
|
Roll Range |
No support |
|
Yaw Range |
±170° / 360°*N (Ethernet/SDI out) |
|
Vibration angle |
Pitch/Roll：±0.02°, Yaw：±0.02° |
|
One-key to center |
√ |
|
Weight |
1151g |
|
Dimension |
127*122*177.1mm |
Package contents
1 x Gemini Gimbal
1 x Quick Mount Adapter with Dumper
1 x I/O Control Box
1 x Mounting Kit
1 x Connection Cable Kit
1 x Power Cable
1 x English user manual
