Gimbal & Sensori

Fotogrammetria

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Model	Mapper 24MP	Mapper 36MP	Mapper 42MP	Mapper 61MP	Oblique 120
Camera format:	APS-C	Full Frame	Full Frame	Full Frame	5 x APS-C
Sensor type:	APS CMOS Exmor	Exmor CMOS	CMOS Exmor R®	BSI CMOS	CMOS
Megapixel	24.3	36.3	42	60.2	121.5 (24.3×5)
Total Pixel	6000 x 4000	7360×4912	7952 x 5304	9504×6336	5 x 6000 x 4000
Supported Lens	25-35mm	25-35-40-56mm	25-35-40-56mm	25-35-40-56mm	25-35mm(included)
Image Format	JPEG, RAW,RAW+JPEG	JPEG, RAW,RAW+JPEG	JPEG, RAW,RAW+JPEG	JPEG, RAW,RAW+JPEG	JPEG, RAW,RAW+JPEG
Hot Shoe signal:	Yes	Yes	Yes	Yes	Yes
RTK/PPK interface	Yes	Yes	Yes	Yes	Yes
Shutter Trigger:	PWM	PWM	PWM	PWM	PWM
Shutter Speed:	30-1/4000sec	30-1/8000sec	30-1/8000sec	30-1/8000sec	30-1/4000sec
Continuous shooting:	3fps	4fps	2.5fps	3fps	1fps
Storage	SD Card-Max 512gb	SD Card-Max 512gb	SD Card-Max 512gb	SD Card-Max 512gb	SD Card-Max 512gb
Setup	Onboard/USB	Onboard/USB	Onboard/USB	Onboard/USB	Onboard/USB
Data Reading	USB3.0	USB3.0	USB3.0	USB3.0	USB3.0
Video Out	Yes, Micro HDMI	Yes, Micro HDMI	Yes, Micro HDMI	Yes, Micro HDMI	No
Power Supply	9-28V@1.2A	12-28V@1.2A	12-28V@1.5A	9-28V@1.5A	9-28V@3A
Operating Temperature	-10+50°C	-10+50°C	-10+50°C	-10+50°C	-10+50°C
Weight	105(without lens)	220(without lens)	220(without lens)	220(without lens)	700g(with lens)
Size	736236mm	1007040mm	1007040mm	1007040mm	160160120mm

DJI PSDK	Yes, SkyPort (optional)	Yes, SkyPort (optional)	Yes, SkyPort (optional)	Yes, SkyPort (optional)	Yes, SkyPort (optional)
Pixhawk Ready	Yes	Yes	Yes	Yes	Yes
Standalone	Yes	Yes	Yes	Yes	Yes

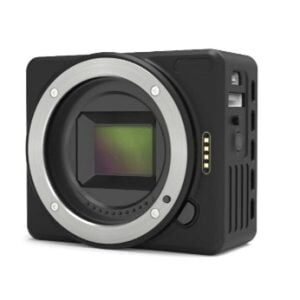

Mapping Camera 24MP

Maggiori Dettagli

Mapping Camera 36MP

Maggiori Dettagli

Mapping Camera 42MP

Maggiori Dettagli

Mapping Camera 61MP

Maggiori Dettagli

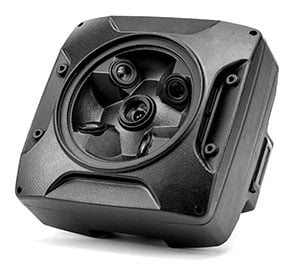

Mapping Camera Oblique 120

Maggiori Dettagli

Termografia

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.


Model	Flir Vue Pro R 336-640	Flir Duo Pro R 336-640	Workswell Wiris Pro	Micasense Altum-PT
Daylight Sensor	N/A	8.51MP-4K:3840*2160	2.13MP-FullHD 1080p	5.1 MP
Optical Zoom	N/A	30x, F=4.3~129mm	10x, F3.8,f~88,4mm	N/A
Digital Zoom	4X	4X	14x	N/A
Thermal Sensor	640*480p – 9hz	640*480p – 30hz	640480p(12661010) – 30hz	320*256 – 30hz
Thermal band			7.5-13.5um	7.5-13.5um
Other Sensor	N/A	N/A	N/A	3.2MP: Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)
Multiview	N/A	Yes	Yes	N/A
Max. range	N/A	N/A	N/A	3000mt
GPS Geotag	Yes, Mavlink	Yes, Mavlink-Direct	Yes, Mavlink-Direct	Yes,Mavlink-Direct
Quick-Mount	Yes	Yes	Yes	Yes
Video Out	A/V	A/V – HDMI	HDMI-Ethernet	WiFi
Control	PWM,Mavlink	PWM,Mavlink	PWM,Mavlink,Ethernet,Can	PWM,Sbus,UART,TCP
Weight	113g	325g	430g	460g
Dimension	574445 mm	878269 mm	838568 mm	8970110 mm

Flir Vue
Pro R-640

Maggiori Dettagli

Flir Duo
Pro R-640

Maggiori Dettagli

Workswell
Wiris Pro

Maggiori Dettagli

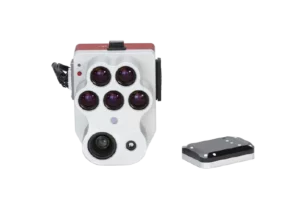

Micasense Altum-PT

Maggiori Dettagli

Ispezione

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

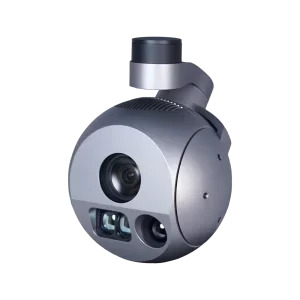

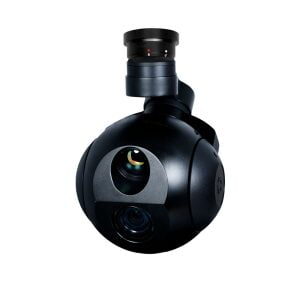

Model	Gemini X30T	Zeta X40-4K	Gemini X40T-4K	Gemini X10T	Zeta X30T-RF	Zeta X30-SL	Zeta X30T
Daylight Sensor	2.13MP – FullHD 1080p	25.9MP – 4K:3840*2160	8.51MP – 4K:3840*2160	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p
Optical Zoom	30x, F=4.3~129mm	20x, F=4.08~81.6mm	20x, F3.8,f~88,4mm	10x, F=5.1mm~51mm	30x, F=4.3~129mm	30x, F=4.3~129mm	30x, F=4.3~129mm
Digital Zoom	✓ – 12x	✓ – 40x FullHD	✓ – 12x	✗	✓ – 12x	✓ – 12x	✓ – 12x
Thermal Sensor	640*480 – 25mm	✗	640*480p – 25mm	640*480p – 25mm	640*480p – 25mm	✗	✗
Object Tracking	✓	✓	✓	✓	✓	✓	✓
Multiview	✓	✗	✓	✓	✓	✓	✗
Laser Range finder	✗	✗	✗	✗	✓ – 2000m	✗	✗
Target Geolocalization	✓	✗	✓	✓	✓	✗	✗
Quick-Mount	✓	✓	✓	✓	✓	✓	✓
IP Rating	Ip43	Ip43	Ip43	Ip43	Ip43	Ip43	Ip43
Weight	1288g	630g	3225g	800g	1800g	815g	900g
Dimension	128164196mm	15396140mm	350300250mm	132.6131.4155.6mm	200176215mm	127.6164.5173.5mm	360300250mm

Gemini X30T

Maggiori Dettagli

Zeta X40-4K

Maggiori Dettagli

Gemini X40T-4K

Maggiori Dettagli

Gemini X10T

Maggiori Dettagli

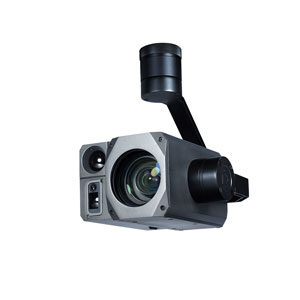

Zeta X30T-RF

Maggiori Dettagli

Zeta X30-SL

Maggiori Dettagli

Zeta X30T

Maggiori Dettagli

Videosorveglianza

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.



Model	Zeta X40-4K	Gemini X30T-50	Gemini X40T-4K	Gemini X30T-35RF	Gemini X30T-RF	Gemini X30T-V	Zeta X30-V
Daylight Sensor	25.9MP – 4K:3840*2160	2.13MP – FullHD 1080p	8.51MP – 4K:3840*2160	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p	2.13MP – FullHD 1080p
Optical Zoom	20x, F=4.08~81.6mm	30x, F=4.3~129mm	20x, F3.8,f~88,4mm	30x, F=4.3~129mm	30x, F=4.3~129mm	30x, F=4.3~129mm	30x, F=4.3~129mm
Digital Zoom	✓ – 40x FullHD	✓- 12x	✓ – 12x	✓ – 12x	✓ – 12x	✓ – 12x	✓ – 12x
Thermal Sensor	✗	640*480p – 50mm	640*480p – 25mm	640*480p – 35mm	640*480p – 25mm	640*480p – 25mm	✗
Object Tracking	✓	✓	✓	✓	✓	✓	✓
Multiview	✗	✓	✓	✓	✓	✓	✗
Laser Range finder	✗	✗	✗	✓ – 2000m	✓ – 2000m	✗	✗
Target Geolocalization	✗	✓	✓	✓	✓	✓	✗
Quick-Mount	✓	✓	✓	✓	✓	✓	✓
IP Rating	Ip43	Ip43	Ip43	Ip43	Ip43	Ip43	Ip43
Weight	630g	1395g	3225g	1180g	1800g	1151g	732g
Dimension	15396140mm	127.6164.5173.5mm	350300250mm	209131165mm	200176215mm	127122177.1mm	115.8103.5175.4mm

Zeta X40-4K

Maggiori Dettagli

Gemini X30T-50

Maggiori Dettagli

Gemini X40T-4K

Maggiori Dettagli

Gemini X30T-35RF

Maggiori Dettagli

Gemini X30T

Maggiori Dettagli

Gemini X30T-V

Maggiori Dettagli

Zeta X30-V

Maggiori Dettagli

Agricoltura di preciosne

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.


Model	Micasense Rededge-MX	Micasense Dual-MX	Micasense Rededge-P	Micasense Altum-PT
Daylight Sensor	3.6 MP	3.6 MP	5.1 MP	5.1 MP
Thermal Sensor	N/A	N/A	N/A	320*256 – 30hz
Thermal band	N/A	N/A	N/A	7.5-13.5um
Multispectral Sensor	1.2mp: Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)	1.2mp: Coastal Blue 444(28), Blue 475(32), Green 531(14), Green 560(27), Red 650(16), Red 668(14), Red Edge 705(10), Red Edge 717(12), Red Edge 740(18)*, NIR 842(57)	1.6mp: Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)	1.6mp: Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)
GPS Geotag	Yes, Mavlink-Direct	Yes, Mavlink-Direct	Yes, Mavlink-Direct	Yes,Mavlink-Direct
Quick-Mount	Yes	Yes	Yes	Yes
Video Out	WiFi	WiFi	WiFi	WiFi
Control	PWM,Sbus,UART,TCP	PWM,Sbus,UART,TCP	PWM,Sbus,UART,TCP	PWM,Sbus,UART,TCP
Weight	231g	508g	350g	460g
Dimension	875945 mm	8712376 mm	897067 mm	8970110 mm

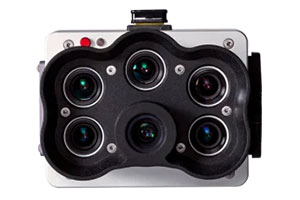

Micasense RedEdge-P

Maggiori Dettagli

Micasense Altum-PT

Maggiori Dettagli

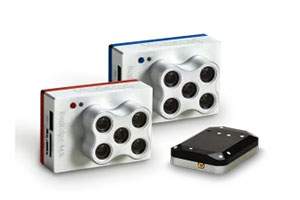

Micasense Duo

Maggiori Dettagli

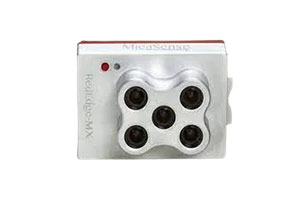

Micasense RedEdge-Mx

Maggiori Dettagli

DJI - PSDK

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

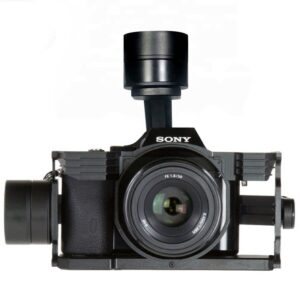

DJI M300 Sony Mapping kit

DJI M300 Oblique Mapping Camera

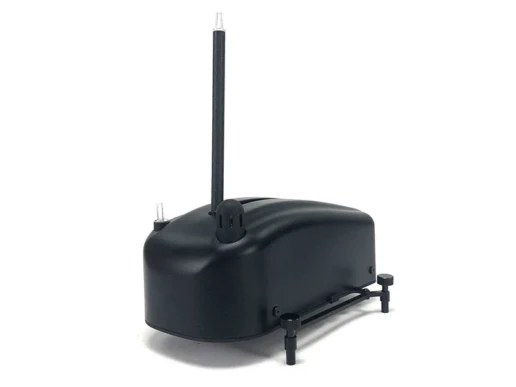

DJI M300 Multigas Air Monitor System

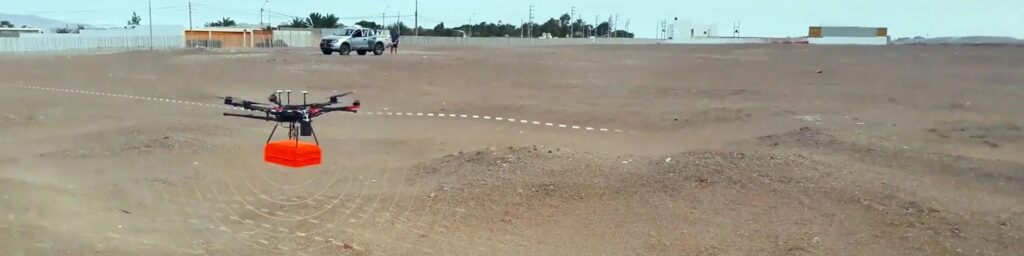

DJI M300
Water Sapler

Maggiori Dettagli

Sensori Speciali

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
